STK0080+ replaces STK0060 STK0070 STK0080 in Fisher CA-880 RS-2010 SR6000

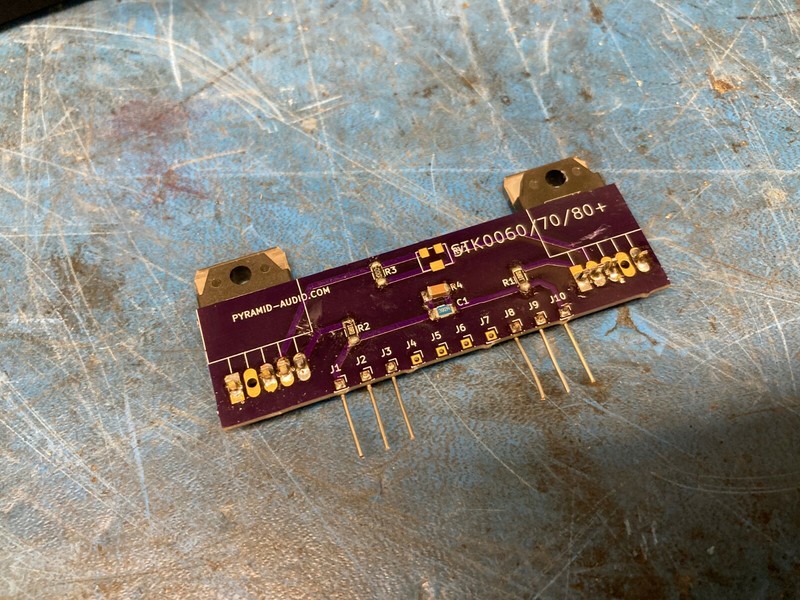

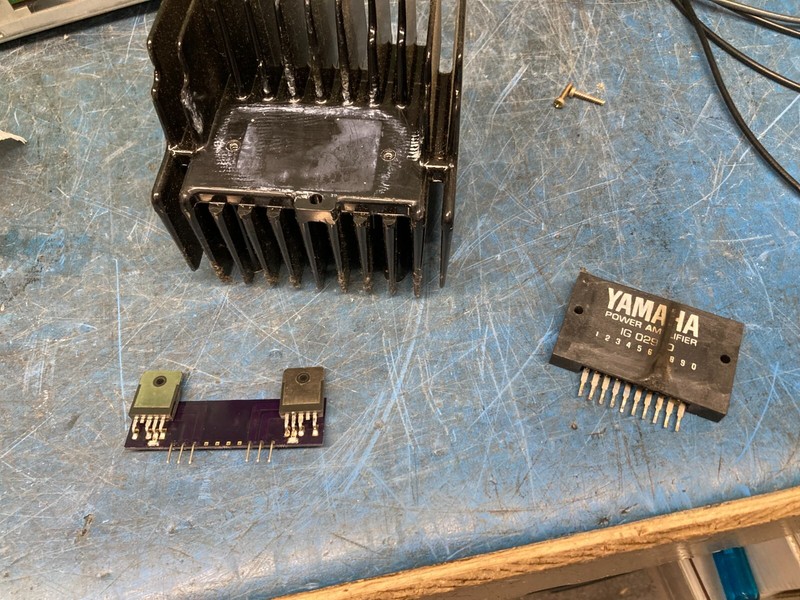

Ready to use STK0080+ module replaces the Sanyo STK0060 STK0070 STK0080, but more robust. Compact design, drop in mounting like the original Sanyo STK0080. NOTE! the STK0030 and STK0040 STK0050 family is smaller than the STK0060 STK0070 STK0080 family.Just six solder connections, it takes a professional tech about 15 minutes to replace the module in a Fisher CA-880. Typical current gain 8,000-20,000 vs original 5,000.15A output compared to the original 7A STK0060/0070 or the 10A STK0080.These same power transistors are used in the 140 watt perchannel Marantz SR8012 and Denon AVR-X7200wNO bias adjustment necessary, set during 100% testing. NO paste needed, we supply silpadsNOT 35 years old orcounterfeit. Sanyo quit making these in 1983.YES Tested in our modified Fisher CA-880. YES 4 ohm speakers. We use 15 amp outputs YES gold plated PCB PCB Finish, ENIG (Gold), compliant with IPC-4552.YES free USPS shipping in the USA Measured performance in CA-880 at 400 Hz.% distortion @ watts 0.0097 0.8 0.0039 8.0 0.0032 160.0032 320.0033 80 Two channels 0.0020% 100 W. This is way more than specified. One channel driven is 120 W 0.0019% 400 Hz !Noise -74 dBV 22-22K s/n 103 dB New: Assembled and tested in Fisher CA-880. Hand tools and simple solderskills required. Technical knowledgerequired. No returns and limited support, this is not for beginners We do supply instructions and helpful test tips. More information at the Pyramid-Audio special projects web page coming soon Check out the latest news! BA312+ listed! Sansui 881 7070 8080 9090 QRX-9001 marantz 2250 2250b 2265 2275 2324 2330.SP-40W+ listed! SX-650 SA-7300 Rotel RA-414 Technics SA-425 STK0050+ listed! SX-780 SR4000 KR-5010 RS-2004A JA-S44 JCX-2050 STK0080+ listed! Fisher RS-2010 CA-880 CA-800 marantz SR6000STK1060+ listed! Onkyo A-8 technics SA-401 Mitsubishi DA-R30 TA-100W+ out! making more! Kenwood KA-8300/7500/9800TA-100WA+ listed! Kenwood KA-9100/9150TA-200W+ Down to 3, we're building more. Kenwood KR-9600 NOTE The TA100W and TA-100WA are very similar but do not run at the right temperature if swapped. ODR OUTER converts the Pioneer ODR Head units proprietary socket to Toslink A good upgrade is to buy two. This ad was consciously worded and the photographs show only ONE module. The word pair is nowhere to be found. well, this sounds good , I'll add this to the listing.
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Compatible Brand | Sanyo Fisher |
| Brand | Pyramid Audio Austin |
| Type | Module |
| Model | STK0060 STK0070 STK0080 |
| MPN | STK0080+ |
| Country/Region Of Manufacture | United States |
Ready to use STK0080+ module replaces the Sanyo STK0060 STK0070 STK0080, but more robust. Compact design, drop in mounting like the original Sanyo STK0080. NOTE! the STK0030 and STK0040 STK0050 family is smaller than the STK0060 STK0070 STK0080 family.Just six solder connections, it takes a professional tech about 15 minutes to replace the module in a Fisher CA-880. Typical current gain 8,000-20,000 vs original 5,000.15A output compared to the original 7A STK0060/0070 or the 10A STK0080.These same power transistors are used in the 140 watt perchannel Marantz SR8012 and Denon AVR-X7200wNO bias adjustment necessary, set during 100% testing. NO paste needed, we supply silpadsNOT 35 years old orcounterfeit. Sanyo quit making these in 1983.YES Tested in our modified Fisher CA-880. YES 4 ohm speakers. We use 15 amp outputs YES gold plated PCB PCB Finish, ENIG (Gold), compliant with IPC-4552.YES free USPS shipping in the USA Measured performance in CA-880 at 400 Hz.% distortion @ watts 0.0097 0.8 0.0039 8.0 0.0032 160.0032 320.0033 80 Two channels 0.0020% 100 W. This is way more than specified. One channel driven is 120 W 0.0019% 400 Hz !Noise -74 dBV 22-22K s/n 103 dB New: Assembled and tested in Fisher CA-880. Hand tools and simple solderskills required. Technical knowledgerequired. No returns and limited support, this is not for beginners We do supply instructions and helpful test tips. More information at the Pyramid-Audio special projects web page coming soon Check out the latest news! BA312+ listed! Sansui 881 7070 8080 9090 QRX-9001 marantz 2250 2250b 2265 2275 2324 2330.SP-40W+ listed! SX-650 SA-7300 Rotel RA-414 Technics SA-425 STK0050+ listed! SX-780 SR4000 KR-5010 RS-2004A JA-S44 JCX-2050 STK0080+ listed! Fisher RS-2010 CA-880 CA-800 marantz SR6000STK1060+ listed! Onkyo A-8 technics SA-401 Mitsubishi DA-R30 TA-100W+ out! making more! Kenwood KA-8300/7500/9800TA-100WA+ listed! Kenwood KA-9100/9150TA-200W+ Down to 3, we’re building more. Kenwood KR-9600 NOTE The TA100W and TA-100WA are very similar but do not run at the right temperature if swapped. ODR OUTER converts the Pioneer ODR Head units proprietary socket to Toslink A good upgrade is to buy two. This ad was consciously worded and the photographs show only ONE module. The word pair is nowhere to be found. well, this sounds good , I’ll add this to the listing.
