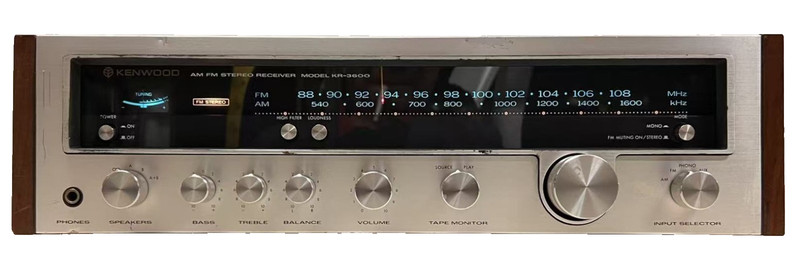

Vintage Kenwood KR-3600, 22W AM/FM Receiver, 1976, Fully Restored
Our Restoration Procedures:1. Check Out The Stereo, If There Is Anything Wrong, We Will Fix It.2. Clean & Lubricate All Of The Switches & Controls.3. Electrolytic Capacitor Check, If There Is Any Weak One, We Will Change It.4. FM IF & MPX Circuit Alignment By Using A Sweep Signal Generator & Victor Scope.5. Change Burned Lamps.6. Check Out & Adjust Power Amplifier's Center Voltage & Standby Current.7. Audio Frequency Response & Distortion Test. 8. Clean All Of The Knobs By Ultrasonic Cleaner.9. Functional Check. 0. All Sales We Give A 90-Day Labor & Parts Warranty, If There Is Any Problem, You Send It Back We Will Repair It For You Free Of Charge, You Pay The Send-In Postage, We Pay The Send-Back Postage.DescriptionThe KR-3600 has a large, clearly defined tuning scale with linear FM calibration and a combined signal strength/centre zero tuning meter.SpecificationsTuning range: FM, MWPower output: 22 watts per channel into 8Ω (stereo)Frequency response: 20Hz to 50kHzTotal harmonic distortion: 0.8%Damping factor: 35Input sensitivity: 2.5mV (MM), 150mV (line)Signal to noise ratio: 70dB (MM), 90dB (line)Speaker load impedance: 4Ω to 16ΩDimensions: 500 x 140 x 302mm
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Kenwood |
| Model | KR-3600 |
| Country/Region Of Manufacture | Japan |
| Unit Quantity | Excellent |
Our Restoration Procedures:1. Check Out The Stereo, If There Is Anything Wrong, We Will Fix It.2. Clean & Lubricate All Of The Switches & Controls.3. Electrolytic Capacitor Check, If There Is Any Weak One, We Will Change It.4. FM IF & MPX Circuit Alignment By Using A Sweep Signal Generator & Victor Scope.5. Change Burned Lamps.6. Check Out & Adjust Power Amplifier’s Center Voltage & Standby Current.7. Audio Frequency Response & Distortion Test. 8. Clean All Of The Knobs By Ultrasonic Cleaner.9. Functional Check. 0. All Sales We Give A 90-Day Labor & Parts Warranty, If There Is Any Problem, You Send It Back We Will Repair It For You Free Of Charge, You Pay The Send-In Postage, We Pay The Send-Back Postage.DescriptionThe KR-3600 has a large, clearly defined tuning scale with linear FM calibration and a combined signal strength/centre zero tuning meter.SpecificationsTuning range: FM, MWPower output: 22 watts per channel into 8Ω (stereo)Frequency response: 20Hz to 50kHzTotal harmonic distortion: 0.8%Damping factor: 35Input sensitivity: 2.5mV (MM), 150mV (line)Signal to noise ratio: 70dB (MM), 90dB (line)Speaker load impedance: 4Ω to 16ΩDimensions: 500 x 140 x 302mm
