Pioneer SX-1000TW Complete Rebuild Kit High-Quality Receiver Recap Transistors

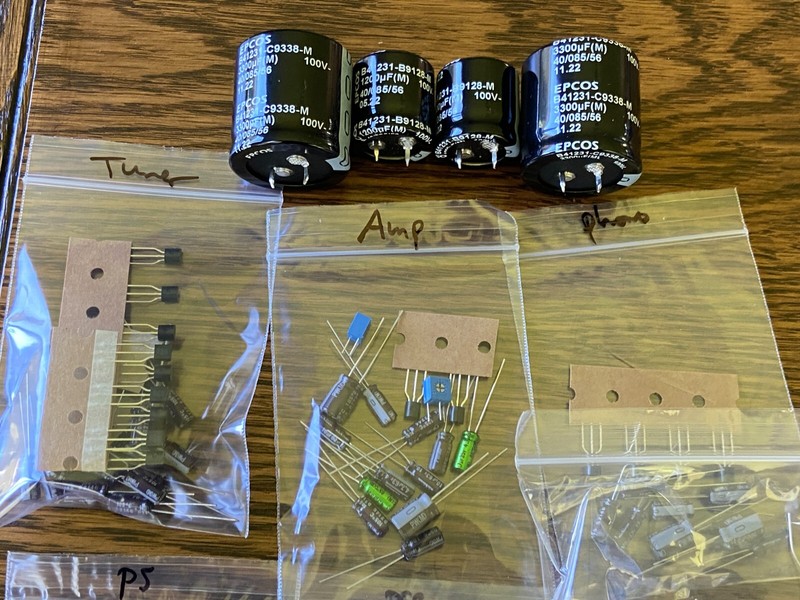

Up for sale here is this rebuild kit for the Pioneer SX-1000TW, Pioneer SX-1500T, or Allied 395. This includes all the parts you need to rebuild the Pioneer SX-1000TW power supply board, amplifier board, phono EQ board, preamp board, and tuner boards, plus it includes upgraded replacements for all four chassis-mounted capacitors and new 0.7 ohm 7W resistors to replace all six of the original .7 ohm resistors. This does not include new lights, fuses, or output transistors. The correct replacement output transistors are four MJ21196G (replaces 2SC897/2SC793), available here. Please do not buy any of the Chinese output transistors listed on eBay--these are counterfeit and may damage your receiver. This kit includes the following: Power Supply Board: 6 capacitors7 diodes (1 zener)3 transistors Amplifier Board: 12 capacitors2 transistors2 trimmers Phono EQ Board: 8 capacitors4 transistors Preamp Board:12 capacitors4 transistors Tuner Boards: 17 capacitors9 transistors Misc: 4 new main capacitors (same diameter as the old ones so they'll fit the clamps--2 3300 uf 100v to replace the 1000 uf 100v, 2 1200 uf 100v to replace the 1000 uf 50v)6 0.7 ohm 7W resistors to replace the old 0.7 ohm 5W resistors2 trimmers4 capacitors (small under-chassis caps)Instructions The board kits are in individual bags to make things easier. These are all high-quality brand new genuine parts. The main capacitors are Epcos 3300 uf 100v and 1200 uf 100v capacitors, the other capacitors are 105° Panasonic FC, Nichicon PW, Nichicon KL, Wima film, and one Supertech axial cap at the same uf ratings and the same or higher voltage ratings. The transistors and diodes are the correct Onsemi subs for the original transistors, and the trimmers are new Bourns trimmers. These are extremely high-quality parts, the same ones I use when I rebuild Pioneer equipment. Two trimmers will need one leg extended in order to fit in perfectly, but it's pretty easy, and I'll explain how in the instructions. I will include surprisingly well-written instructions, but rebuilding a receiver is moderately complicated, and you should know what you're doing and have a decent soldering iron and a dim-bulb tester with a 60W or 100W incandescent bulb. The instructions will walk you through everything, and will also explain how to set the bias and DC balance voltages. Before you order this kit, take a look in your receiver and see if there is a small board marked "W15-010." If you have that board, let me know the capacitor values on it so I can include those. This is an extra board that is on some of these receivers but not all. If none of your boards are marked "W15-010," don't worry about it. US shipping and handling is $8, and international is $28. If you have any questions, please ask. Looking for more parts? I have power switches, feet, pushbuttons, top case screws, bottom screws, faceplate screws, white LED fuse lamps, blue LED fuse lamps, 6.3v bi-pin bulbs, 8v bi-pin bulbs, 12v bi-pin bulbs, wired 8v 60ma bulbs, new power cords, new main capacitors for the Marantz 1060/2230, wired Pioneer speaker plug replacements, new 630v yellow film capacitors at 13 different values, a large variety of transistors for vintage stereo repair, and more. Just use "add to cart" on everything you want and then check out for combined shipping.
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Pioneer |
| Model | SX-1000TW |
| Country/Region Of Manufacture | United States |
Up for sale here is this rebuild kit for the Pioneer SX-1000TW, Pioneer SX-1500T, or Allied 395. This includes all the parts you need to rebuild the Pioneer SX-1000TW power supply board, amplifier board, phono EQ board, preamp board, and tuner boards, plus it includes upgraded replacements for all four chassis-mounted capacitors and new 0.7 ohm 7W resistors to replace all six of the original .7 ohm resistors. This does not include new lights, fuses, or output transistors. The correct replacement output transistors are four MJ21196G (replaces 2SC897/2SC793), available here. Please do not buy any of the Chinese output transistors listed on eBay–these are counterfeit and may damage your receiver. This kit includes the following: Power Supply Board: 6 capacitors7 diodes (1 zener)3 transistors Amplifier Board: 12 capacitors2 transistors2 trimmers Phono EQ Board: 8 capacitors4 transistors Preamp Board:12 capacitors4 transistors Tuner Boards: 17 capacitors9 transistors Misc: 4 new main capacitors (same diameter as the old ones so they’ll fit the clamps–2 3300 uf 100v to replace the 1000 uf 100v, 2 1200 uf 100v to replace the 1000 uf 50v)6 0.7 ohm 7W resistors to replace the old 0.7 ohm 5W resistors2 trimmers4 capacitors (small under-chassis caps)Instructions The board kits are in individual bags to make things easier. These are all high-quality brand new genuine parts. The main capacitors are Epcos 3300 uf 100v and 1200 uf 100v capacitors, the other capacitors are 105° Panasonic FC, Nichicon PW, Nichicon KL, Wima film, and one Supertech axial cap at the same uf ratings and the same or higher voltage ratings. The transistors and diodes are the correct Onsemi subs for the original transistors, and the trimmers are new Bourns trimmers. These are extremely high-quality parts, the same ones I use when I rebuild Pioneer equipment. Two trimmers will need one leg extended in order to fit in perfectly, but it’s pretty easy, and I’ll explain how in the instructions. I will include surprisingly well-written instructions, but rebuilding a receiver is moderately complicated, and you should know what you’re doing and have a decent soldering iron and a dim-bulb tester with a 60W or 100W incandescent bulb. The instructions will walk you through everything, and will also explain how to set the bias and DC balance voltages. Before you order this kit, take a look in your receiver and see if there is a small board marked “W15-010.” If you have that board, let me know the capacitor values on it so I can include those. This is an extra board that is on some of these receivers but not all. If none of your boards are marked “W15-010,” don’t worry about it. US shipping and handling is $8, and international is $28. If you have any questions, please ask. Looking for more parts? I have power switches, feet, pushbuttons, top case screws, bottom screws, faceplate screws, white LED fuse lamps, blue LED fuse lamps, 6.3v bi-pin bulbs, 8v bi-pin bulbs, 12v bi-pin bulbs, wired 8v 60ma bulbs, new power cords, new main capacitors for the Marantz 1060/2230, wired Pioneer speaker plug replacements, new 630v yellow film capacitors at 13 different values, a large variety of transistors for vintage stereo repair, and more. Just use “add to cart” on everything you want and then check out for combined shipping.
