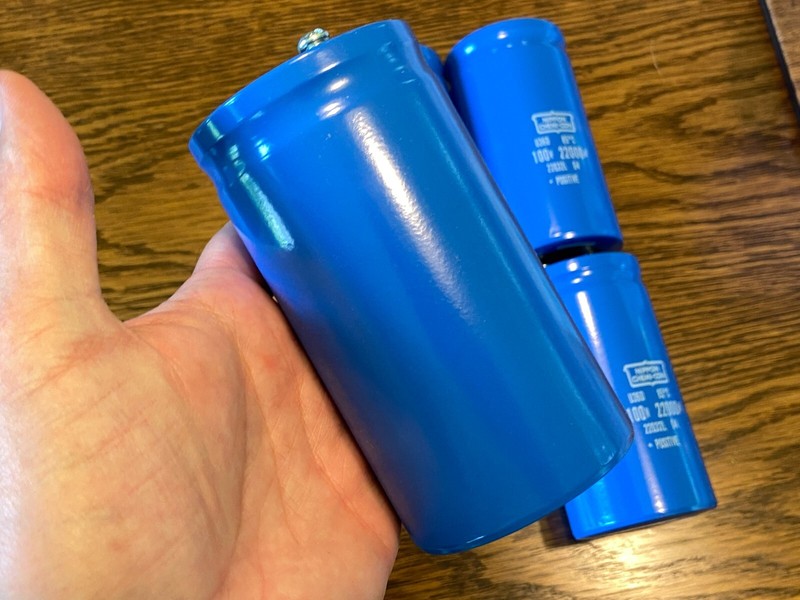

4 New 22000 uf 100v Chemi-Con Capacitors Sansui G-22000 Main Filter EXACT FIT
Up for sale here is this set of 4 brand new Nippon Chemi-Con 22000 uf 100v capacitors. These are drop-in replacements for the Sansui G-22000, Pioneer SX-1050, SX-1080, SX-1250, SX-1280, SX-5590, SPEC 2, and SPEC 4. They fit the old clamps perfectly! These are the same capacitors I use when I am rebuilding vintage gear. These have a higher capacitance than the original 15000 uf caps in the Sansui G-22000, but they are perfect replacements for the originals and will not stress the G-22000, since the soft-start circuit protects it from any major inrush current. These are a bit taller than the original caps but will fit just fine. These caps measure 63.5mm in diameter and 118mm tall, and use screw terminals. The screws are included. These are authentic Made in USA capacitors. Please note that the screws on these are thicker than the screws on the old main caps on the Pioneer gear, so you'll need to enlarge the terminals on the receiver in order to accommodate this. You can drill out the old ring terminals and center mounting piece with a 5mm drill bit if you want, or just replace the old ring terminals, or cut the ring terminals open to make them into spade terminals. Please see my pictures for details. The current batch of capacitors I am selling has 28W32L codes on them, and the boxes are dated 2234, so these were made the 34th week of 2022. A note about installation: Main filter capacitors are usually used to provide the positive and negative rails to the amplifier section, so two of them will appear to be wired backwards (with positive to chassis ground). This is normal. Before you replace your capacitors, take some clear pictures of the wiring so you will know how to connect the new ones. If your equipment starts blowing fuses after replacing the main filter capacitors, you probably wired one or more backwards. US shipping and handling is $15, and international is $75. If you have any questions, please ask. Looking for more parts? I have power switches, feet, pushbuttons, top case screws, bottom screws, faceplate screws, white LED fuse lamps, blue LED fuse lamps, 6.3v bi-pin bulbs, 8v bi-pin bulbs, 12v bi-pin bulbs, wired 8v 60ma bulbs, new power cords, new main capacitors for the Marantz 1060/2230, wired Pioneer speaker plug replacements, new 630v yellow film capacitors at 38 different values, new 1200v yellow film capacitors at 15 values, a large variety of transistors for vintage stereo repair, new Wima film capacitors for stereo repair, new 250v yellow film crossover capacitors, and more. Just use "add to cart" on everything you want and then check out for combined shipping.
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Nippon Chemi-Con |
| MPN | Does Not Apply |
Up for sale here is this set of 4 brand new Nippon Chemi-Con 22000 uf 100v capacitors. These are drop-in replacements for the Sansui G-22000, Pioneer SX-1050, SX-1080, SX-1250, SX-1280, SX-5590, SPEC 2, and SPEC 4. They fit the old clamps perfectly! These are the same capacitors I use when I am rebuilding vintage gear. These have a higher capacitance than the original 15000 uf caps in the Sansui G-22000, but they are perfect replacements for the originals and will not stress the G-22000, since the soft-start circuit protects it from any major inrush current. These are a bit taller than the original caps but will fit just fine. These caps measure 63.5mm in diameter and 118mm tall, and use screw terminals. The screws are included. These are authentic Made in USA capacitors. Please note that the screws on these are thicker than the screws on the old main caps on the Pioneer gear, so you’ll need to enlarge the terminals on the receiver in order to accommodate this. You can drill out the old ring terminals and center mounting piece with a 5mm drill bit if you want, or just replace the old ring terminals, or cut the ring terminals open to make them into spade terminals. Please see my pictures for details. The current batch of capacitors I am selling has 28W32L codes on them, and the boxes are dated 2234, so these were made the 34th week of 2022. A note about installation: Main filter capacitors are usually used to provide the positive and negative rails to the amplifier section, so two of them will appear to be wired backwards (with positive to chassis ground). This is normal. Before you replace your capacitors, take some clear pictures of the wiring so you will know how to connect the new ones. If your equipment starts blowing fuses after replacing the main filter capacitors, you probably wired one or more backwards. US shipping and handling is $15, and international is $75. If you have any questions, please ask. Looking for more parts? I have power switches, feet, pushbuttons, top case screws, bottom screws, faceplate screws, white LED fuse lamps, blue LED fuse lamps, 6.3v bi-pin bulbs, 8v bi-pin bulbs, 12v bi-pin bulbs, wired 8v 60ma bulbs, new power cords, new main capacitors for the Marantz 1060/2230, wired Pioneer speaker plug replacements, new 630v yellow film capacitors at 38 different values, new 1200v yellow film capacitors at 15 values, a large variety of transistors for vintage stereo repair, new Wima film capacitors for stereo repair, new 250v yellow film crossover capacitors, and more. Just use “add to cart” on everything you want and then check out for combined shipping.
