2 Replacement Main Filter Capacitors CDE 4700 uf 50v 30mm SX-424 Harman 430 730

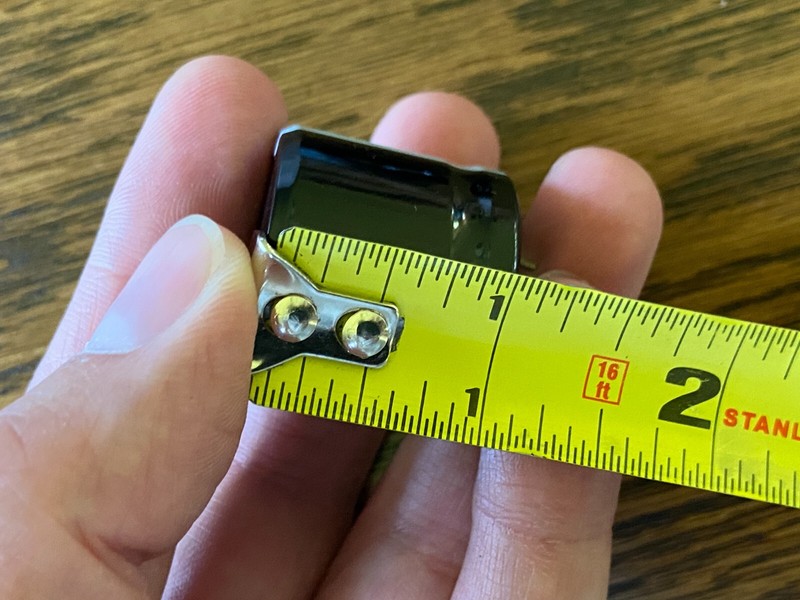

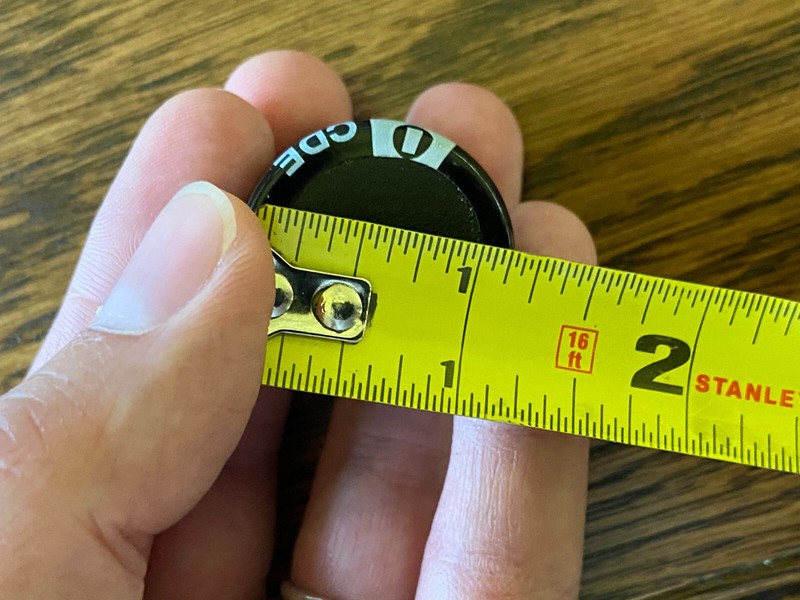

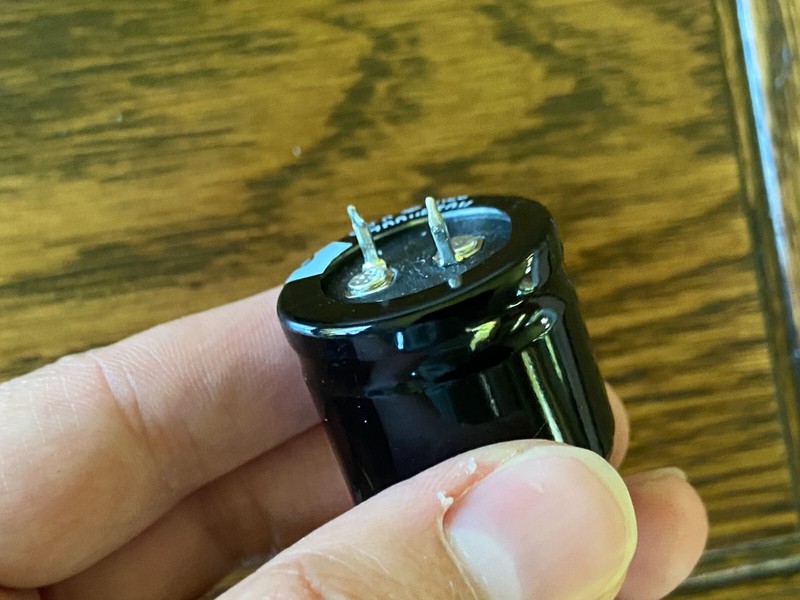

Up for sale here is this set of 2 new Cornell-Dubilier snap-in capacitors. These are 4700 uf 50v capacitors, and are perfect drop-in replacements for the main filter capacitors in the Pioneer SX-424 (only uses one), Harman-Kardon 430 (uses 4), and Harman-Kardon 730 (uses 4), among others. For the HK models you will need to use a wire to jump one circuit-board terminal to another in order for these to work perfectly. These are extremely high-quality capacitors and are the same ones I use when I rebuild vintage gear. Dimensions for these capacitors are 25mm tall and 30mm in diameter. Terminals are 10mm apart. These are shorter than the old caps, due to improvements in design. Please see my pictures for details. A note about installation: Main filter capacitors are usually used to provide the positive and negative rails to the amplifier section, so one of them will appear to be wired backwards (with positive to chassis ground). This is normal. Before you replace your capacitors, take some clear pictures of the wiring so you will know how to connect the new ones. If your equipment starts blowing fuses after replacing the main filter capacitors, you probably wired one backwards. US shipping and handling is $5, and international is $18. If you have any questions, please ask. Looking for more parts? I have power switches, feet, pushbuttons, top case screws, bottom screws, faceplate screws, white LED fuse lamps, blue LED fuse lamps, 6.3v bi-pin bulbs, 8v bi-pin bulbs, 12v bi-pin bulbs, wired 8v 60ma bulbs, new power cords, new main capacitors for the Marantz 1060/2230, wired Pioneer speaker plug replacements, new 630v yellow film capacitors at 13 different values, a large variety of transistors for vintage stereo repair, and more. Just use "add to cart" on everything you want and then check out for combined shipping.
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Cornell-Dubilier |
| Featured Refinements | Pioneer SX |
| Country/Region Of Manufacture | United States |
Up for sale here is this set of 2 new Cornell-Dubilier snap-in capacitors. These are 4700 uf 50v capacitors, and are perfect drop-in replacements for the main filter capacitors in the Pioneer SX-424 (only uses one), Harman-Kardon 430 (uses 4), and Harman-Kardon 730 (uses 4), among others. For the HK models you will need to use a wire to jump one circuit-board terminal to another in order for these to work perfectly. These are extremely high-quality capacitors and are the same ones I use when I rebuild vintage gear. Dimensions for these capacitors are 25mm tall and 30mm in diameter. Terminals are 10mm apart. These are shorter than the old caps, due to improvements in design. Please see my pictures for details. A note about installation: Main filter capacitors are usually used to provide the positive and negative rails to the amplifier section, so one of them will appear to be wired backwards (with positive to chassis ground). This is normal. Before you replace your capacitors, take some clear pictures of the wiring so you will know how to connect the new ones. If your equipment starts blowing fuses after replacing the main filter capacitors, you probably wired one backwards. US shipping and handling is $5, and international is $18. If you have any questions, please ask. Looking for more parts? I have power switches, feet, pushbuttons, top case screws, bottom screws, faceplate screws, white LED fuse lamps, blue LED fuse lamps, 6.3v bi-pin bulbs, 8v bi-pin bulbs, 12v bi-pin bulbs, wired 8v 60ma bulbs, new power cords, new main capacitors for the Marantz 1060/2230, wired Pioneer speaker plug replacements, new 630v yellow film capacitors at 13 different values, a large variety of transistors for vintage stereo repair, and more. Just use “add to cart” on everything you want and then check out for combined shipping.
